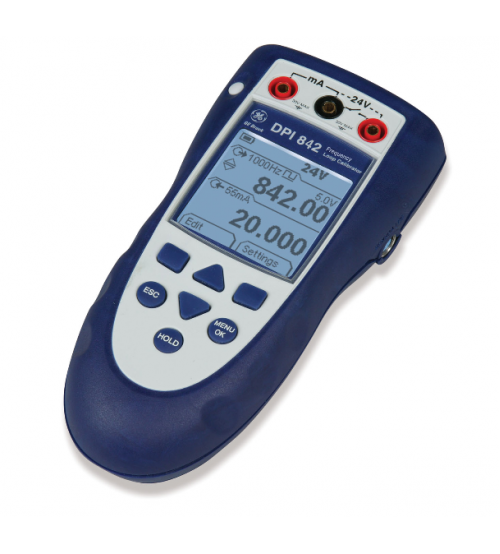

GE Druck DPI842 Frequency Loop Calibrator with mA Measurement

Product Features:

• Measure or source 0.01 Hz to 50 kHz
• CPM, CPH and totalizing counter
• Generator with three output waveforms (sine, square and triangular) from 0.1 V to 24 V amplitude
• Dual readings provide simultaneous frequency output and mA measurement for transmitter and loop maintenance
• 24V loop power supply energizes transmitters and control loops
• Automatic switch test captures open/closed trip values to provide fast checks on safety systems
• HART loop resistor can be switched into the loop when required by a HART digital communicator
• Compatible with IDOS Pressure Modules (sold separately) for convenient measurements from 10 inH2O to 10,000 psi
• Advanced functions include hold, maximum/minimum/average, scaling, tare, and damping filter
• Large backlit display with menu driven interface
• Robust, weatherproof construction resists impact
• Secure grip and compact size for one-handed operation

Applications

• Electronic test and maintenance
• Transmitter calibration and switch test
• Loop set-up and diagnostics

Included Accessories:

• 1 - Frequency Loop Calibrator (DPI 842)
• 1 - Set of Batteries
• 1 - Calibration Certificate
• 1 - User Guide
• 1 - Set of Test Leads
• 1- Carrying case
