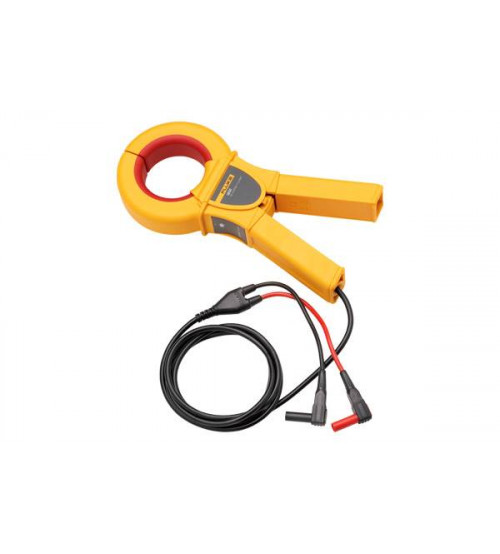

Fluke i800 AC Current Clamp Probe
2,252.85SAR
2,252.85SAR
Ex Tax: 1,959.00SAR
The Fluke i800 AC Current Clamp is designed for use with multimeters, recorders, safety testers, etc., for accurate non-intrusive AC current measurement. It extends the current measuring capability of a digital multimeter to 800 A AC. It is compatible with digital mulitmeters that accepts shrouded 4 mm (0.16) banana plugs and has an AC milliamp range.
- Measures AC current from 100 mA to 800 A rms
- 30 Hz to 10 kHz frequency range
- CAT III 600 V rating
- Accepts up to 54 mm (2.1 in) diameter conductor size
- 1000:1 conversion factor for easy calculation
- Rugged positive action design
Specifications Nominal current range 800 A rms Continuous current range 100 mA to 800 A rms Maximum non-destructive current 1500 A rms (50/60 Hz) Lowest measureable current 100 mA Basic accuracy ±1% of reading Useable frequency 30 Hz - 10 kHz (-3dB) Output level(s) 1 mA / A Safety Specifications Safety CAT III 600 V Maximum voltage 600 V AC rms or DC Mechanical and General Specifications Warranty 1 year Maximum conductor diameter 54 mm (2.13 in) Output cable length 1.6 m (63 in) Lead connector Shrouded banana plugs
